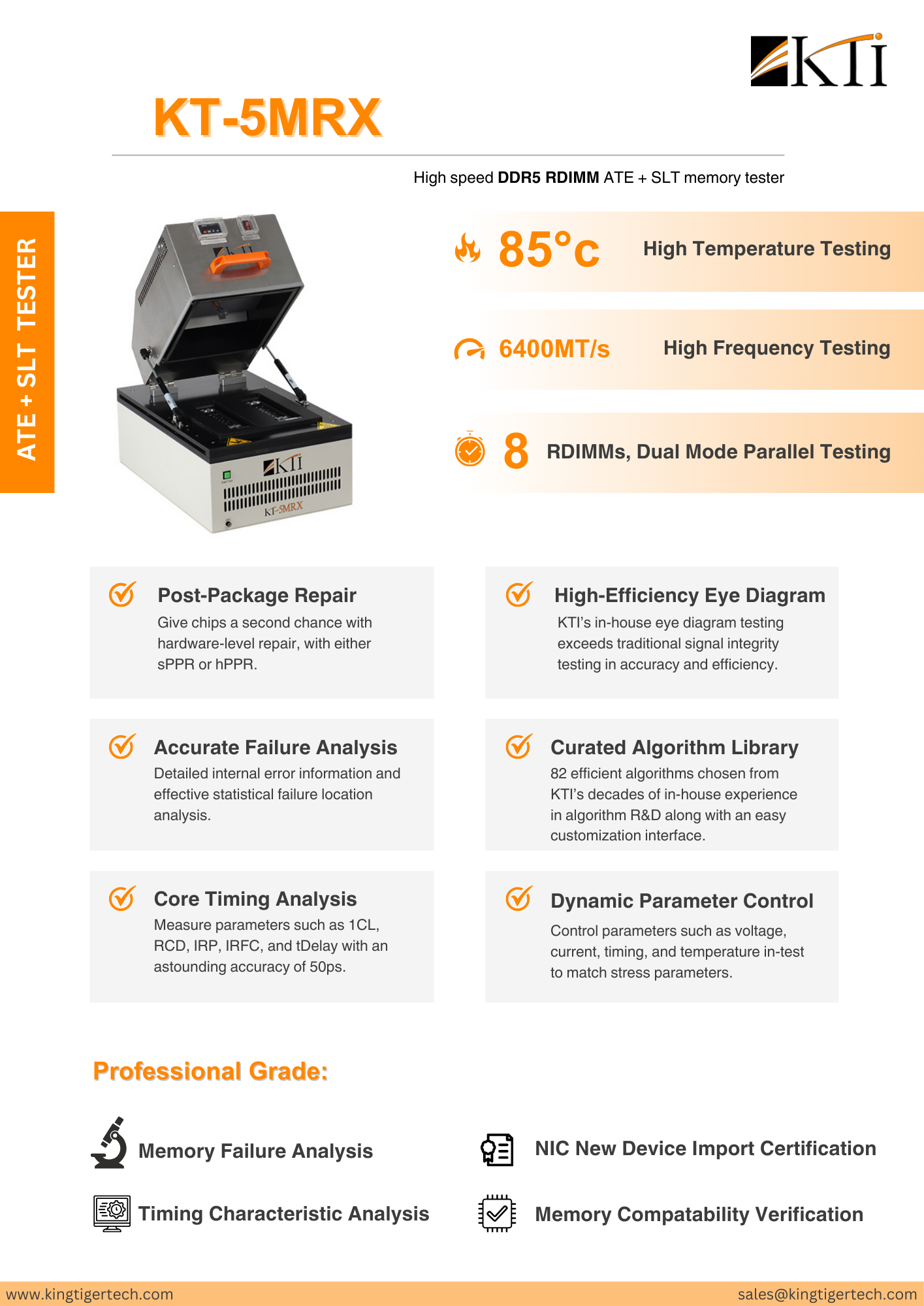

KT-5MRX

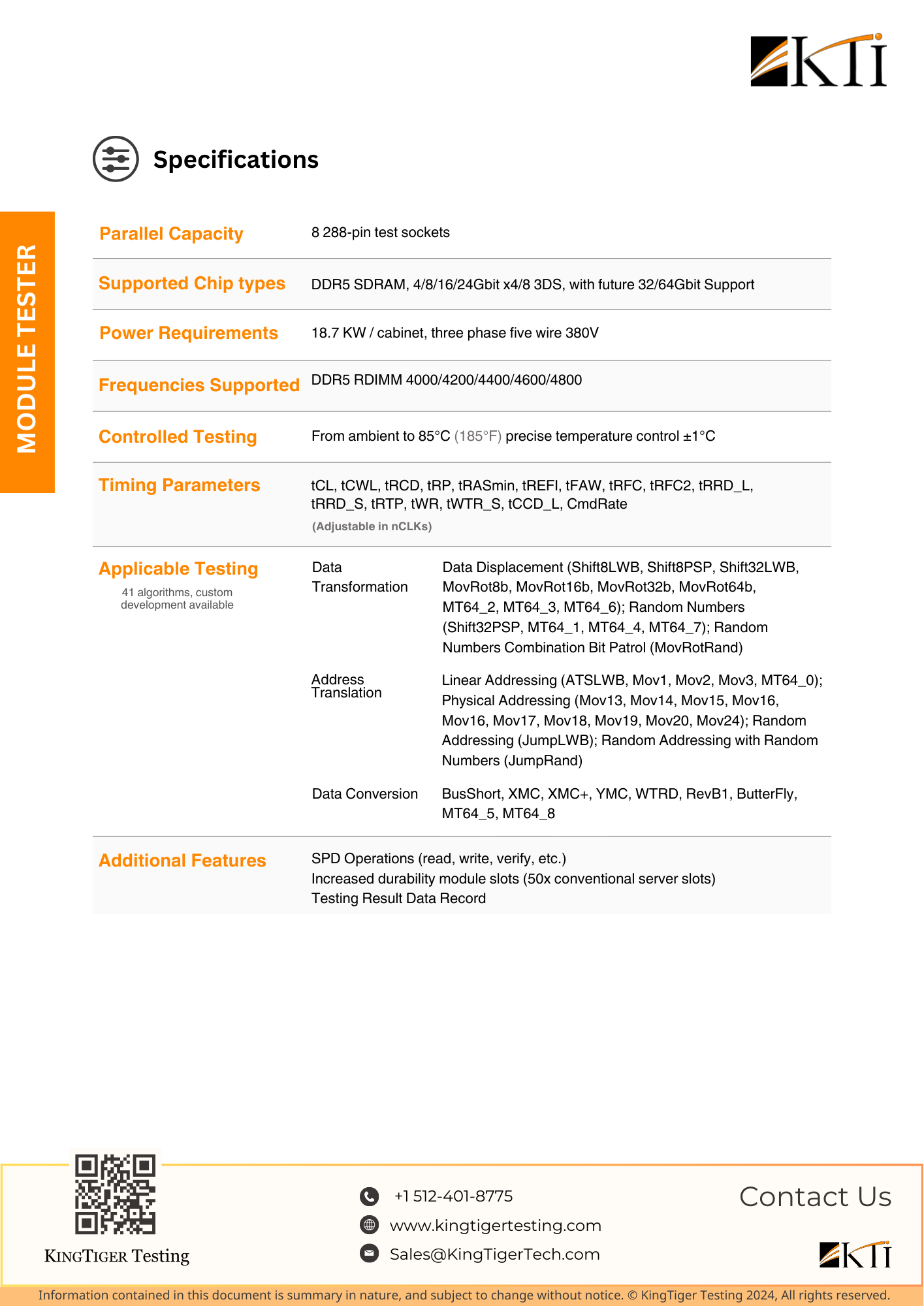

Specs

Configuration: 4/8 DUT per chassis

Operation Modes: Manual loading / unloading. Parallel testing

Control Software: TigerClaw software installed on external Control PC with Windows 11 Professional

Memory Type Supported: DDR5 SDRAM 4/8/16/24 Gb, x4/8 width, 3DS configurations, Future support for 32/64 Gb

Memory Speed Supported: RDIMM

DDR5 4000-6400

Memory Types Supported: DDR5 288pin ECC RDIMM / 3DS ECC RDIMM, ECC-4bit and ECC-8bit

Test Frequency: Clock2000 ~ 3200 MHz, adjustable by 100MHz increment

Switching Data Rate: 4.0Gbps to 6.4Gbps,br>
(5.6Gbps to 6.4Gbps only support 1 Rank RDIMM)

Capable of data switching on both clock edges

I/O Interface: DDR5 CK/CA/DQ/DQS/DM POD 1.1V
RESETn CMOS 1.1V, PWR_GOOD open-drain pull-up to 3.3v SPD CMOS Push-pull 1.0V

Temperature Control Chamber: Optional Heat chamber with digital temperature profile control up to 85°C
Refer to Heat Chamber specifications for details
