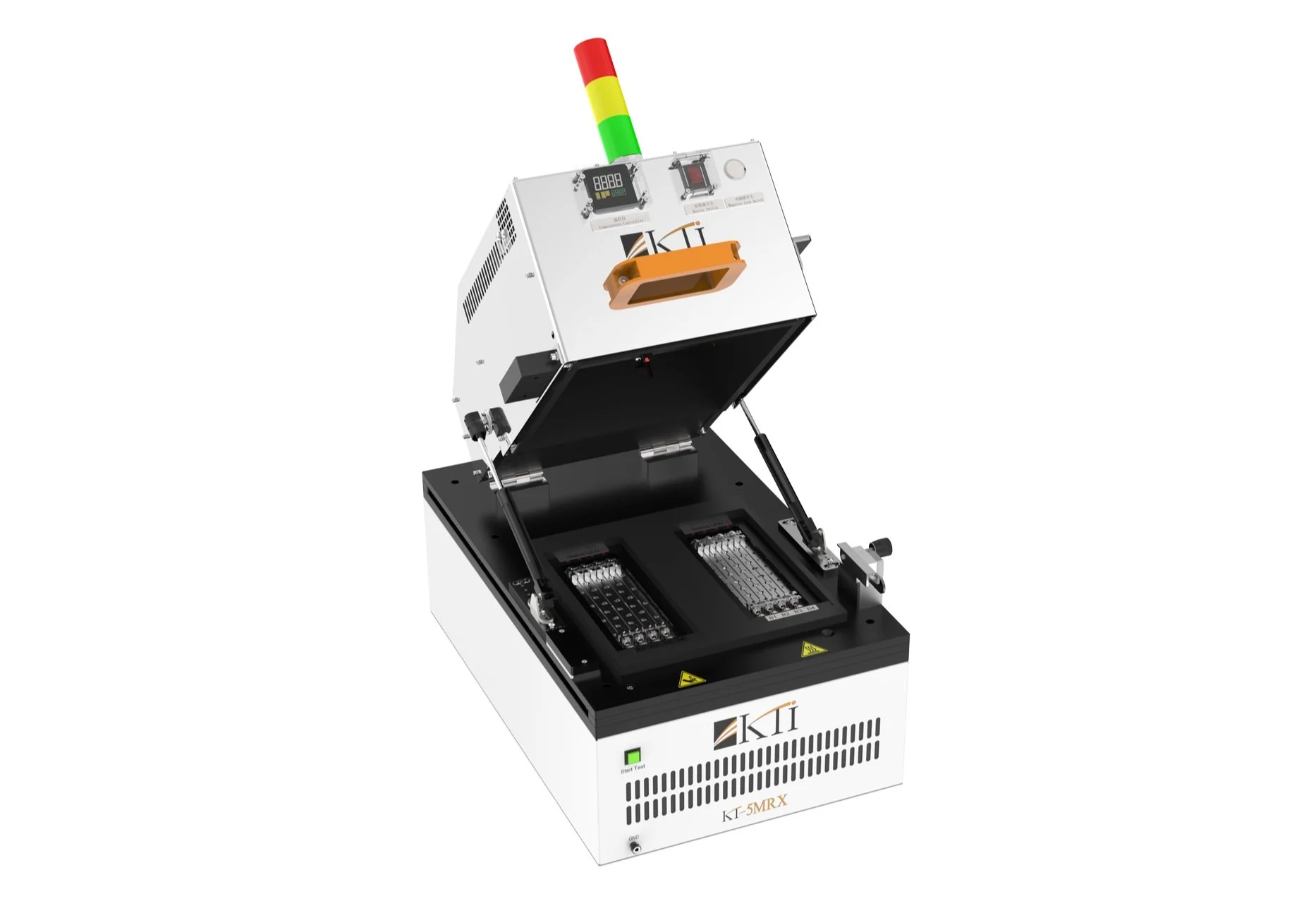

KT-5MRX

KingTiger’s high-speed DDR5 RDimm Tester. The World’s only patented ATE/SLT dual-mode high speed Tester.

  • Configuration: 4/8 DUT per chassis

    Operation Modes: Manual loading / unloading. Parallel testing

    Control Software: TigerClaw software installed on external Control PC with Windows 11 Professional

    Memory Type Supported: DDR5 SDRAM 16/24 Gb. Future support for 32/64 Gb. x4/x8 density.

    Memory Standards Supported: DDR5 ECC RDIMM / 3DS DDR3200/3600/4000/4400/4800/5600/6400 standard

    Test Frequency: Clock 1600 / 1800 / 2000 / 2200 / 2400 / 2800 / 3200 MHz

    I/O Interface: DDR5 CK/CA/DQ/DQS/DM POD 1.1V
    RESETn CMOS 1.1V, SPD CMOS Push-pull 1.0V, 3.3V Open-drain PMIC, PWR.Good open-drain pull up to 3.3v

    Temperature Control Chamber: Optional heat/cold chamber with control profile up to 85°C (185°F), Optional cold air inlet to maintain DUT temperature at +5°C above ambient

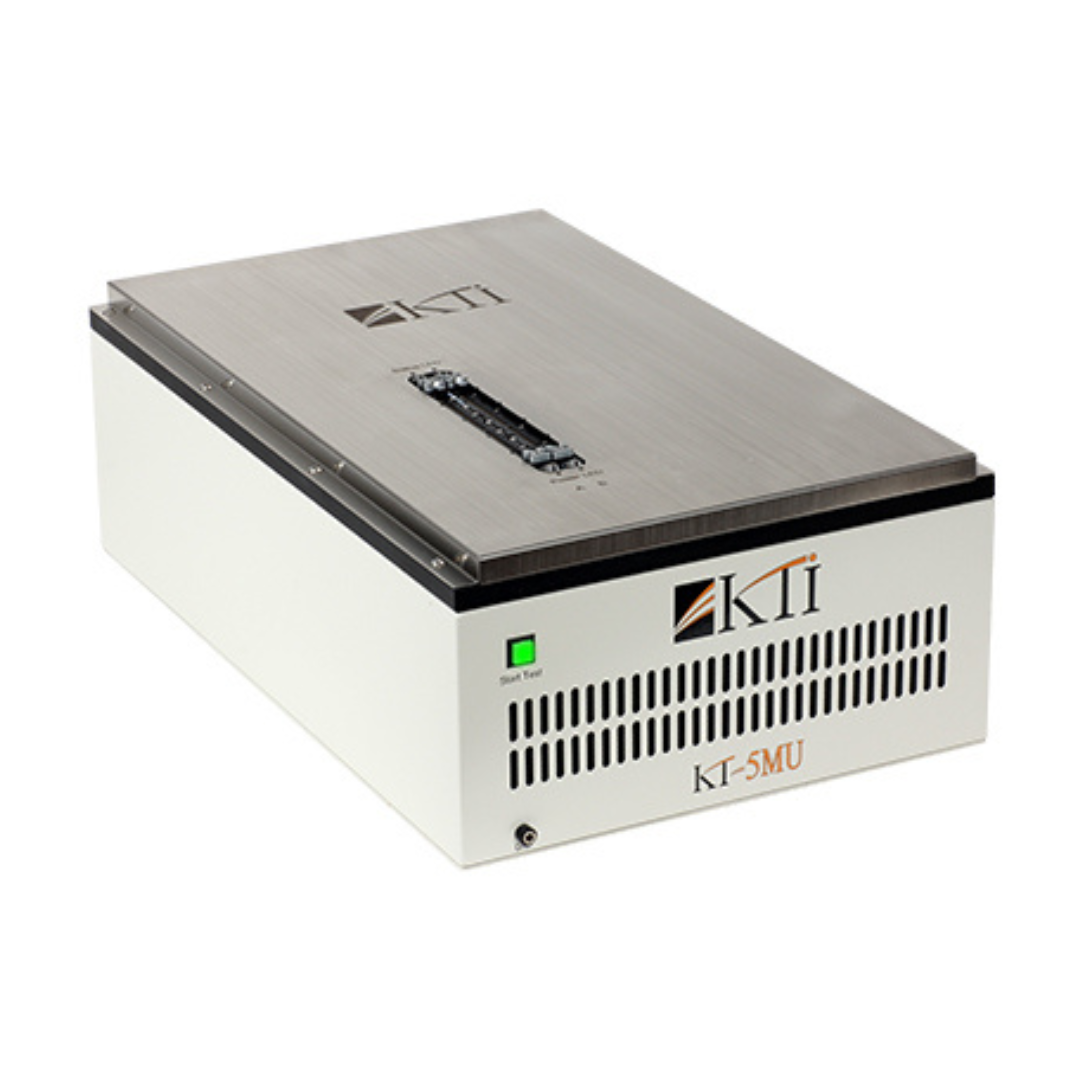

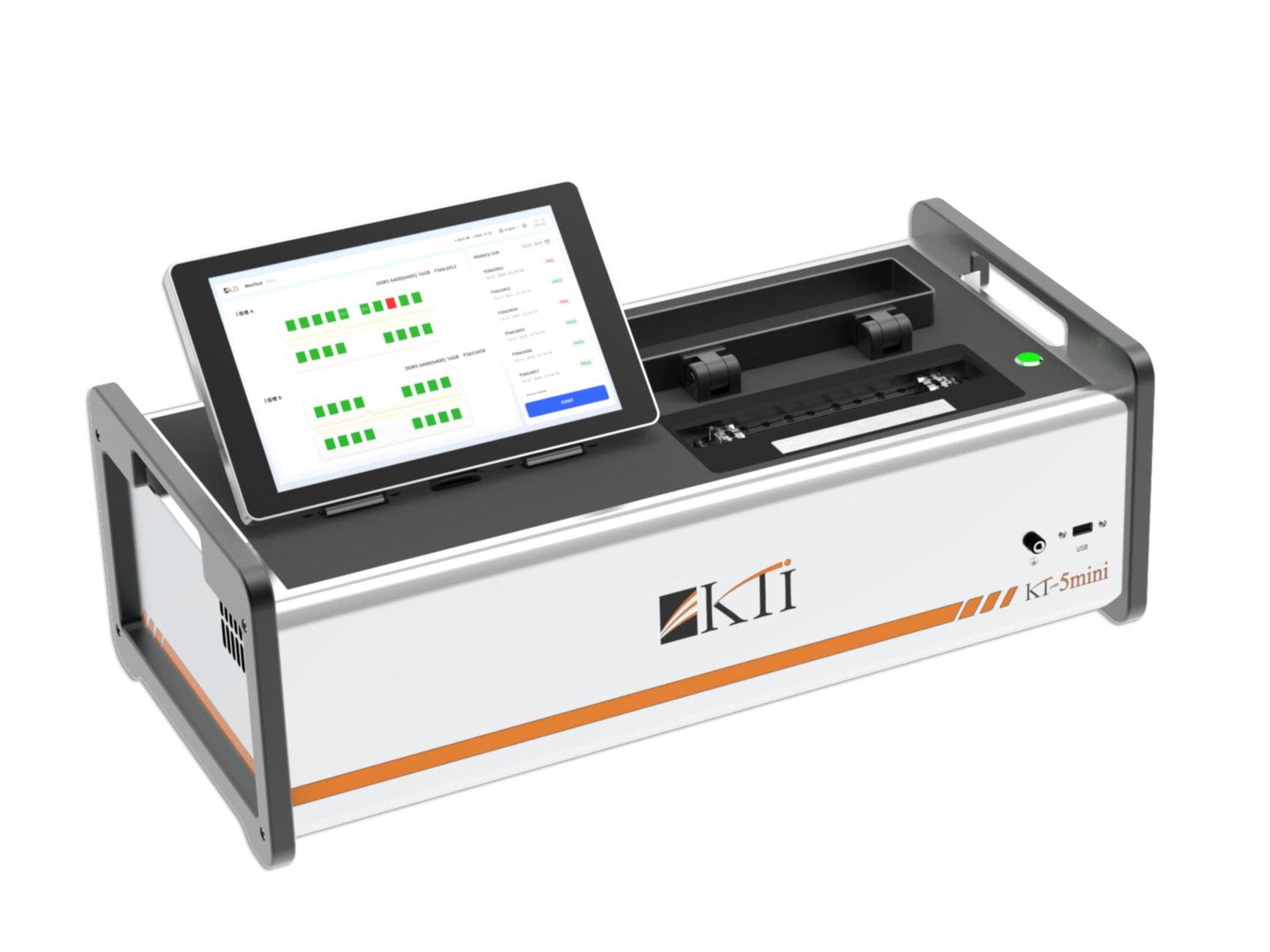

KT-5MU

KingTiger’s high-speed DDR5 UDimm Tester. The World’s only patented ATE/SLT dual-mode high speed Tester.

  • Configuration: 2 DUT per chassis

    Operation Modes: Manual loading / unloading. Parallel testing

    Control Software: TigerClaw software installed on external Control PC with Windows 10 Professional

    Number of Test Sockets: 2x 288-pin ZIF test sockets per chassis ( Each ‘Test Site’ corresponds to one DIMM test socket)

    Memory Type Supported: DDR5 SDRAM 8/16 Gb density, x8/16 width

    DIMM Standards Supported: DDR5 ECC and non-ECC Un-buffered DIMM
    DIMM capacity 32GB max.
    ECC 1R x8 / 1R x16; Non-ECC 1R x8 / 2R x8 / 1R x16

    Test Frequency (Std): Clock 2000 / 2200 / 2400 / 2600 / 2800 MHz
    Optional feature per MHz fine adjustment

    OC Support: Over-clock memory frequency up to 4000MHz (DDR8000)
    *Actual OC capability depends on DIMM performance and VDD/VDDQ settings

    I/O Interface: DDR5 CK/CA/DQ/DQS/DM POD 1.1V
    DDR5 RESETn CMOS 1.1V
    SPD I2C CMOS 3.3V, open-drain
    PMIC PWR_GOOD POD 1.1V

    Temperature Control Chamber: Optional heat chamber with integrated test plan flow control
    Heat chamber temperature 85C max, +/-3C overall accuracy
    Refer to Heat Chamber specifications for details

DDR4

module testers

KT-4MG+ Pro

KingTiger’s evolved DDR4 Hybrid Module Tester, with automated Physical Memory Repair and 4Gb X 4 devices on DIMM support.

  • Configuration: 4 DUTs per unit

    Operation Modes: Manual loading / unloading. Parallel testing

    Control Software: TigerClaw software with Windows 7/8/10 Professional Edition

    Number of Test Sockets: 4x 288-pin sockets per standard chassis. Multi-chassis system available

    Memory Types Supported: DDR4 SDRAM, 2 / 4 / 8/ 16/ 32(3DS) Gbit, x4/8/16 configurations

    DIMM Standards Supported: UDIMM 64-bit  DDR4-1333 through DDR4-3200. RDIMM/LRDIMM 72-bit DDR4-1333 through DDR4-1600

    Test Frequency (Std): Clock 2000 / 2200 / 2400 / 2600 / 2800 MHz
    Optional feature per MHz fine adjustment

    OC Support: Over-clock memory frequency up to 3500MHz (DDR7000 PLUS)
    *Actual OC capability depends on DIMM performance and VDD/VDDQ settings

    I/O Interface: DDR5 CK/CA/DQ/DQS/DM POD 1.1V
    DDR5 RESETn CMOS 1.1V
    SPD I2C CMOS 3.3V, open-drain
    PMC PWR_GOOD POD 1.1V

    Temperature Control Chamber: Optional heat chamber with integrated test plan flow control
    Heat chamber temperature 85C max, +/-3C overall accuracy
    Refer to Heat Chamber specifications for details

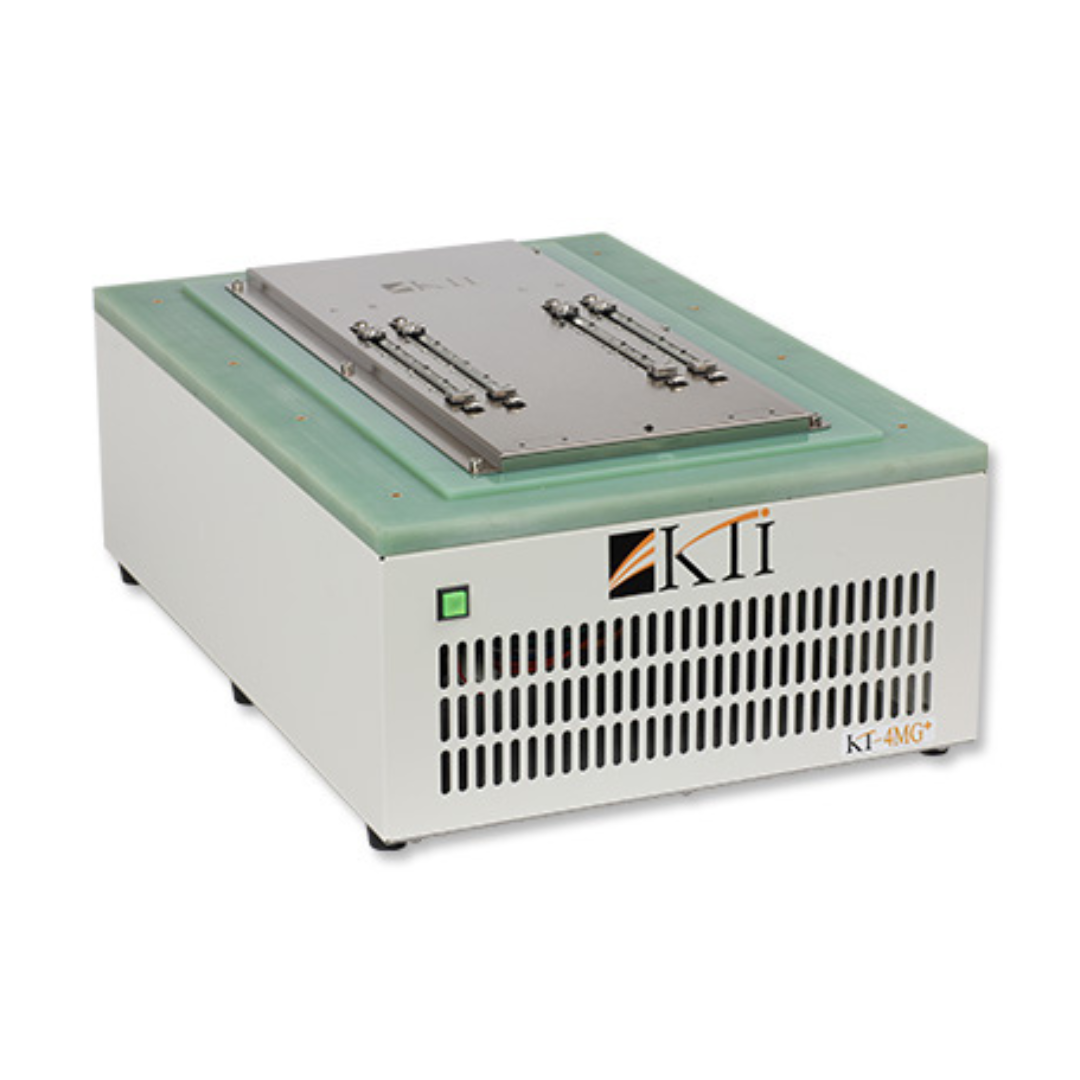

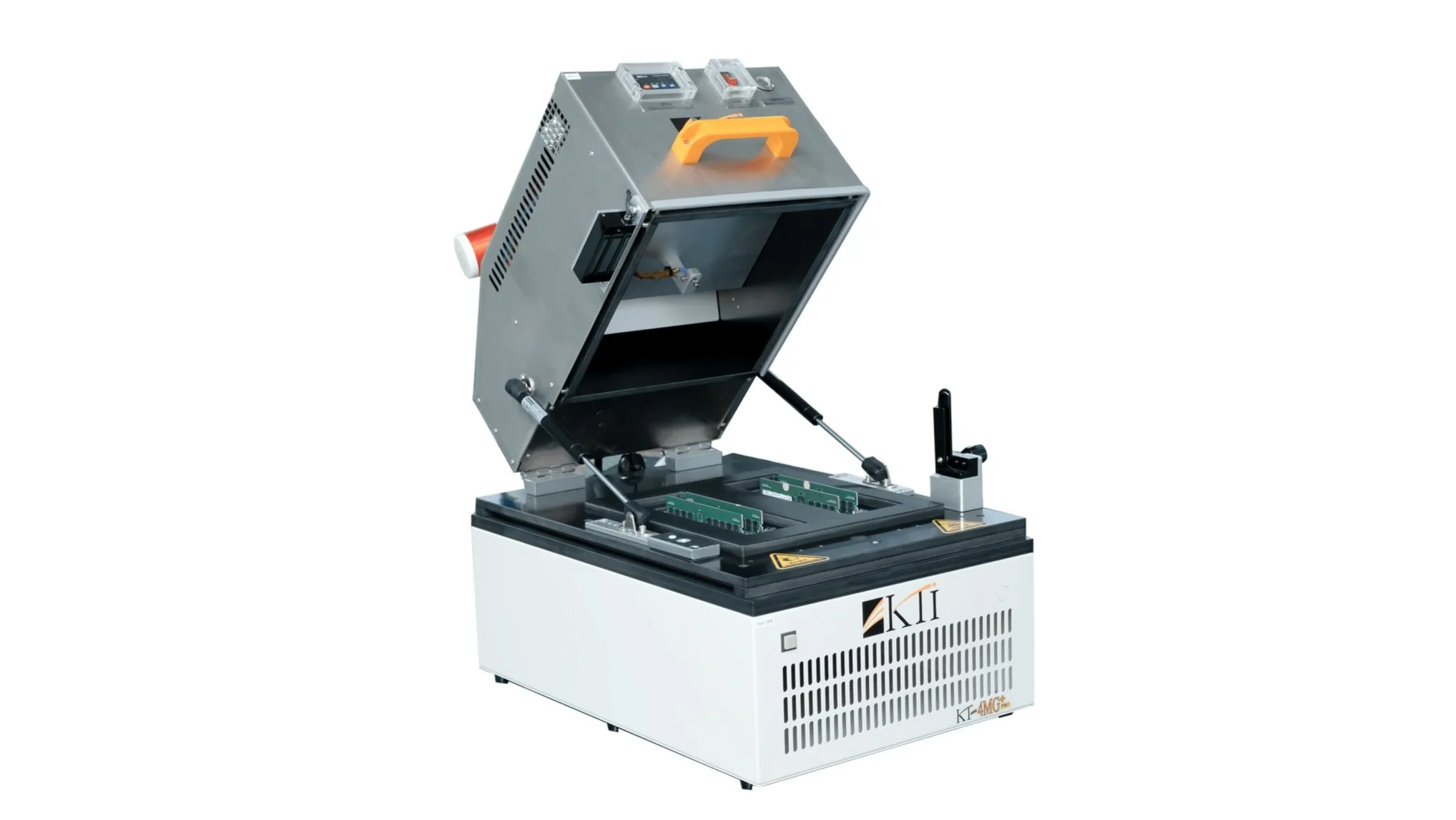

KT-4MG+

KingTiger’s DDR4 Hybrid Module Tester. The world’s only logical / application hybrid DRAM tester, with Physical Memory Repair functionality.

    • Fully Automated / Manual Testing + BTT Single Step Tester with speeds up to 3.2GBits/sec true data rate

    • Capable of handling all standard DDR4 DIMM configurations including LRDIMM& NVDIMM

    • NEW! Support JEDEC soft and hard PPR (Post Package Repair) for ECC and non-ECC DIMM, based on the testing result, failure memory cell can be repair in hardware level

    • Available in configurations from 1 to 4 DIMMs per tester; Multiple testers can be linked in parallel for production

    • Clock: 667MHz – 1600MHz, with frequency stepping according to JEDEC specification

    • Coverage: Timing Windows, Algorithmic Pattern, ApplicationCompatibilities

    • Logic Tests: Row Hammer, MarchA, MarchX, MarchC, MarchG, MATS, and many more industry standard tests.

    • Application Tests: ATSLWB, JumpLWB, Shift, MoveRot, MT64 and more…

    • KINGTIGER proprietary: Weak Cell Tracking

    • Programmable core parameters: tCL, tCWL, tRC, tRCD, tRASmin, tRP, tRRD, tWTR, tRFC, tFAW, tCWL, tRTP, tWR, tCCD, CmdRate
      Core Timing Parameters Profiling: 50ps resolution

    • Timing Windows Margining /Rank Margin Tool(RMT): 1/64 Clock resolution

    • Test During Burn-in (TDBI) High Temperature Chamber (KT-HC2) available

    • Customization software available – Data Logging and Analysis, Test Flow Control, Bar Code Scanning, etc
